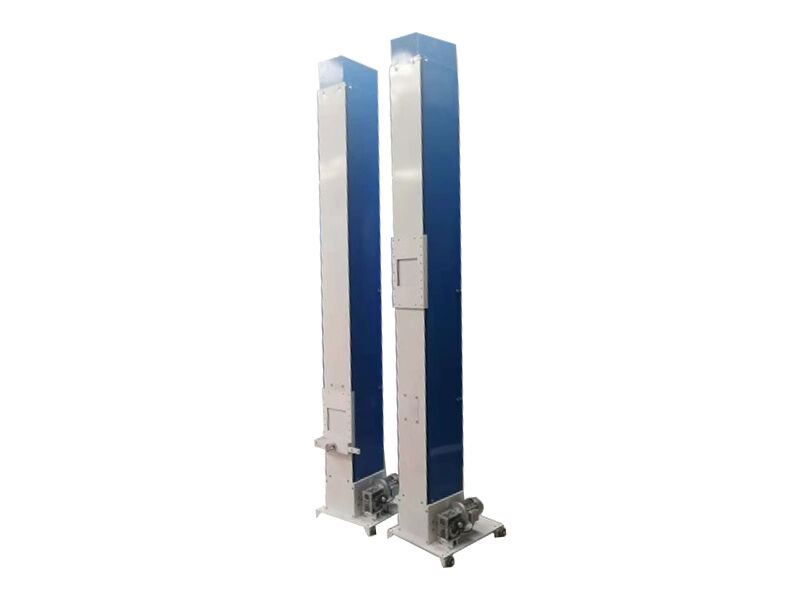

Model Of Digital Reciprocating Machine HY-2000
A chain driven vertical rack, AC reducer with imported maintenance free turbine drive, and a digital decoder.PLC control, servo motor drive, digital display.

1) A chain driven vertical rack, AC reducer with imported maintenance free turbine drive, and a digital decoder.

2) PLC control, servo motor drive, digital display.

3) The program can input: the lowest inversion point, the highest inversion point and the running speed, and display the number through the Chinese interface.

4) Each gun bracket can fix 4 automatic guns, and the spray gun is Sam spray gun with extension rod.

Effective reciprocating stroke: 2000mm;

Rated load capacity: 50kg;

Rated voltage and power: AC 220 V, 1000 W;

Lifting speed: 0-750mm / s, continuously adjustable,

5) The features of the reciprocator are as follows:

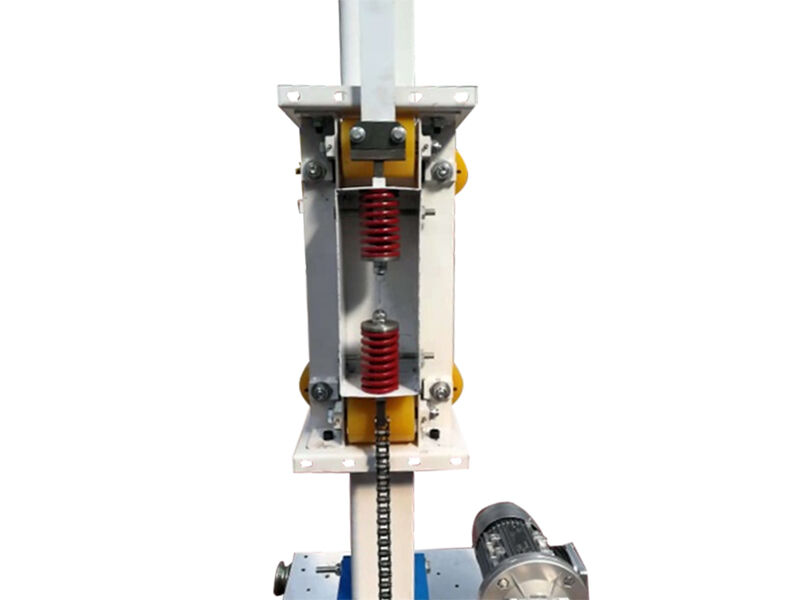

It is designed in the way of rolling wheel and sliding rail. It runs very smoothly with low noise and long service life

The gearbox is imported from Italy, which is a life-long maintenance free turbine gearbox. It needs no oil and is durable.

The position sensor adopts imported optical sensor (Omron), which has no mechanical friction and infinite life;

The engineering plastic tank chain is used to protect the powder pipe from being folded, so as to ensure uniform powder discharge;

The control part adopts Siemens programmable microcomputer controller and Japan Sanling frequency conversion control system;

The elevator is equipped with an upper and lower limit protection switch which is equal to the height of the spray room opening to prevent the parts on the elevator from hitting the upper and lower edges of the spray room opening.

6) The working stroke and operating position of the reciprocator can be monitored and data set through Siemens Chinese man-machine interface. At the same time, the Chinese man-machine interface can report the fault, provide maintenance guidance, and count the operating time.
